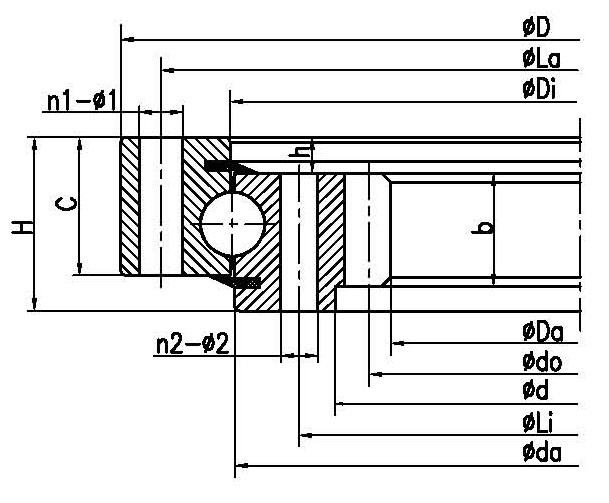

INA Model	Rothe Erde Model	LYC Model	TG Model	Boundary dimensions (mm)				Bolt hole diameter (mm)						Structure dimensions (mm)								Gear Parameters (mm)				Basic load ratinge Coa (KN)	Weight (KG)
INA Model	Rothe Erde Model	LYC Model	TG Model	Da	D	di	H	La	Li	n1	n2	φ1	φ2	D1	d	b	h	B	C	Di	da	m	z	do	x	Basic load ratinge Coa (KN)	Weight (KG)
				216	403		55	358	259	24	28	φ13	φ13	380	235	42	8	47	43	310	306	4	56	224		500	27.5
				216	340		61	324	252	20	20	3/8	3/8			54	7	54	54	288	286	4	56	224		420	19.3
VI 160288N				216	340		39	324	252	20	20	9	9			34	5	34	34	287	289	4	56	224		350	12
			I.340.16.00.D.1	216	340		39	324	252	20	20	φ9	φ9			34	5	34	34	288	288	4	56	224		260	12
				256.95	417.9		50	390	295	18	24	M15.88	M15.88			44	6	44	44	344.48	344.42	5.08	52	264.16		630	24.7
				292	457		48	432	343	18	18	1/2	1/2			46	2	46	46	387.5	387.5	4	75	300		560	29
				294	388		35	372	326	6	6	φ8.5	M8			30	5	30	30	349	347	3	100	300		200	9.9
	062.20.0400.000.11.1503			300	475		55	448	352	16	16	13.5	13.5			46	9	46	46	399	401	5	61	305	-0.5	950	33
				306	445		46	425	345	16	16	φ13	φ13		323	35	8	38	38	386	384	3	104	312		520	20.5
				306	445		46	425	345	16	16	φ13	φ13		323	35	8	38	38	385	385	3	104	312		570	20.1
			VSI200414N	325	486		56	460	375	24	24	φ14	M12	484	350	40	11.5	44.5	44.5	415.5	412.5	5	67	335		630	29.6
			I.486.20.00.B	325	486		56	460	375	24	24	φ14	M12			44.5	11.5	44.5	44.5	415.5	412.5	5	67	335		500	32.2
				325	486		56	460	375	24	24	φ14	M12	484		44.5	11.5	44.5	44.5	415.5	412.5	5	67	335		560	29.6
VSI200414N				325	486		56	460	375	24	24	φ14	M12			40	11.5	44.5	44.5	415.5	412.5	5	67	335		600	29
VSI200414N				325	486		56	460	375	24	24	14	M12*20		350	40	11.5	44.5	44.5	415.5	412.5	5	67	335		560	31
			I.486.20.00.B	325	486		56	460	375	24	24	φ14	M12			44.5	11.5	44.5	44.5	415.5	412.5	5	67	335		550	31
	062.20.0414.500.01.1503			326.5	486		56	460	375	24	24	13.5	M12			45.5	10.5	45.5	45.5	415.5	412.5	5	67	335		720	31
	062.20.0414.575.01.1403			326.5	484.5		56	460	375	24	24	13.5	M12			45.5	10.5	45.5	45.5	415.5	411	5	67	335		720	31
VI 160420N				332	486		39	462	378	16	16	14	14			34	5	34	34	419	421	4	85	340		550	24
			I.486.16.00.D.1	332	486		39	462	378	16	16	φ14	φ14			34	5	34	34	420	420	4	85	340		380	24
	062.20.0450.000.11.1503			345	531		55	500	400	16	16	15.5	15.5			46	9	46	46	449	451	5	70	350	-0.5	1070	38
		013.30.500.**		365	602		80	566	434	20	20	18	18		398	60	10	70	70	501.5	498.5	5	74	370	+0.5	1290	75.8
		014.30.500.**		366	602		80	566	434	20	20	18	18		398	60	10	70	70	501.5	498.5	6	62	372	+0.5	1290	75.8
			I.570.25.00.D.1	378	570		70	540	436	18	18	φ18	φ18		410	55	10	60	55	488	488	6	65	390		980	54
			I.535.22.00.D.3.V	380	535		50	510	420	16	16	φ13	M12?1.25			40	5	45	40	466.5	464.5	4	96	384		1050	32
VI 250489N				384	562		55	538	440	40	40	14	14			50	5	50	50	488	490	6	66	396		1080	43
			I.562.25.15.D.1	385	560		60	538	440	30	30	φ14	φ14		418	43	10	50	50	489	489	6	66	396		1050	41
		013.30.560.**		425	662		80	626	494	20	20	18	18		458	60	10	70	70	561.5	558.5	5	86	430	+0.5	1440	94
		014.30.560.12		426.517	662		80	626	494	20	20	18	18		458	60	10	70	70	561.5	558.5	6	72	432	+0.5	1440	94
			I.635.25.00.D.3.V	439.5	635		60	605	490	24	16	φ15	M16?1.5		467	50	5	55	50	547	547	6	74	444		1190	57
